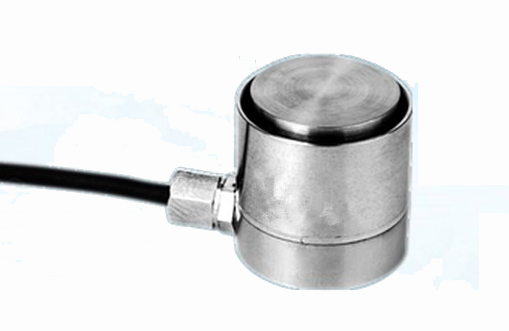

Mini Stainless Steel 10KN~150KN Force Sensor IN-MI-0305

Product Categories

Innovation Electronic Co.,Ltd

Contact Now

Name: Mini Stainless Steel 10KN150KN Force Sensor INMI0305
Brand: Innovation
Price: 1 USD

Model Number : IN-MI-0305

Place of Origin : China

Brand Name : Innovation

MOQ : 10 pcs

Price : USD1-USD1000

Payment Terms : L/C, T/T

Supply Ability : 1000PCS/MONTH

Delivery Time : 7-15DAYS

Packaging Details : CARTON

Contact Now

Mini Stainless Steel 10KN~150KN Force Sensor IN-MI-0305

LOAD CELL DIMENSIONS:

Mini Stainless Steel 10KN~150KN Force Sensor IN-MI-0305

LOAD CELL PARAMETERS:

Capacity	10KN~150KN	Material	Stainless Steel
Rated Output	1.5-2.0mV/V	Output Impedance	350±3Ω
Zero Balance	±2%F.S.	Insulation	≥5000MΩ/100VDC
Non-linearity	1.0%F.S.	Recommended Excitation	5V
Hysteresis	1.0%F.S.	Maximum Excitation	10V
Repeatability	1.0%F.S.	Compensated Temp Range	-10~60ºC
Creep (30min)	0.05%F.S.	Operating Temp Range	-20~80ºC
Temp Effect on Output	0.05%F.S./10ºC	Safe Load Limit	150%
Temp Effect on Zero	0.05%F.S./10ºC	Ultimate Load Limit	200%
Input Impedance	385±5Ω	Cable Size	φ2 x 3m
Wire Connection	Ex + : Red; Ex - : Black; Sig + : Green; Sig - : White
